The Kennel Clad™ Insulated door is the toughest, most insulated kennel door on the market. These units are build to withstand abuse while providing the best seal possible. This design is achieved through several unique features on the panel. It starts with a composite core using a polypropylene air-cell center. This is sandwiched between two sheets of 18 gauge aluminum. The perimeter is then framed with a reinforcing c-channel that allows for the hidden wall and floor seals. Stainless steel fasteners are then screwed together to secure all the layers together. All Security Boss products are hand built to order.

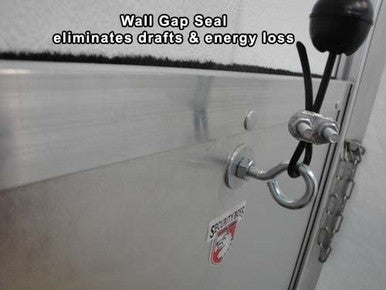

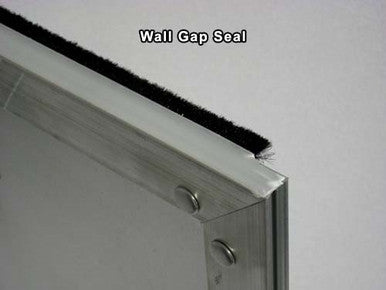

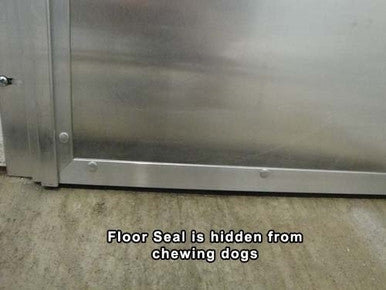

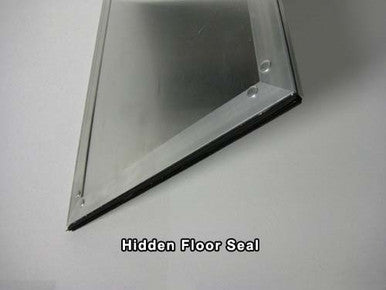

The hidden top seal along the Kennel Clad panel seals the gap between a closed guillotine door and the wall, saving you on passive energy loss as is normally experienced with other kennel door types. The hidden floor seal is designed to make a positive contact on the floor to eliminate gaps when closed. The placement of this seal discourages damage. The Kennel Clad™ model also uses the strongest rails in the industry as well. This means no worries about warping or problems with unreliable gliding. Not only will the panels provide for a dramatic overall energy efficiency, but the rugged design will hold them up for years. This are possibly the last kennel doors you will need to purchase.
|
Model
|
Maximum Opening In Wall
This is the maximum size that each model will adequately cover & still allow for the mounting side rails. |
|
Regular
|
12" wide x 29" height
|
|
Large
|
17" wide x 29" height
|
|
Ex- Large
|
17" wide x 34" height
|
Each Kennel Door comes with complete mounting hardware:
-
2- Screw in hook-pulley assemblies
-
6- Tapcon screws and mollies (for wood, block or concrete walls)
-
2- Cable clamps
-
15 Ft. high strength, 7x7 stainless steel aircraft cable coated in durable black PVC (480lb. test)
- 1- "S" hook
|
Guillotine Kennel Door Comparison
|
||||
|
Model
|
Insulating
|
Material
|
Rail Type
|
Why Purchased
|
|
Kennel Clad Auto Lock |
 |
1" foam core
18 ga. Alum. sides |
Heavy Duty
|
Maximum Insulation
Facility Security, Rugged Design Long Life |
|
Kennel Clad Premium |
|
1" foam core
18 ga. Alum. sides |
Heavy Duty
|
Maximum Insulation
Rugged Design, Long Life |
|
Kennel Clad Insulated |
|
HDPE air cell core
18 ga. Alum. sides |
Heavy Duty
|
Superior Insulation
Rugged Design, Long Life |
|
Thermo Insulated |
|
HDPE air cell core
ABS sides |
Heavy Duty
|
Superior Insulation
White & Black Finish |
|
Kennel Clad Standard |
n/a
|
18 ga. alum.
Reinforced alum. edges |
Heavy Duty
|
Economy Priced,
Rugged Design, |
|
Kennel Clad Economy |
n/a
|
18 ga. alum.
Reinforced bottom |
Light weight
|
Lowest Priced Kennel Door
|
|
Classic Guillotine |
n/a
|
1/4" HDPE
Reinforced alum. edges |
Heavy Duty
|
Rugged Design, Long Life,
translucent - allows light in |
RETURNS: If you should receive a damaged product, you are welcome to return it free of charge and receive a full refund.
EXCHANGES: Exchanges accepted within (14) days from the day you received the product (exclusions apply).
What type of material is the handle?
Each kennel door comes with a strong, lockable stainless steel handle. Inside the handle is a stainless steel spring that helps keep the latch closed, so your dog can’t push the door open. It’s safe and secure, but still easy to open with one hand. You can also add a padlock or clasp for extra security if needed.
Are these kennels easy to assemble?
Your kennel ships with easy assembly instructions, covering all essential components:
- Kennel panel setup
- Panel-to-panel coupling
- Handle & quick-lock latch installation
- Top mesh panels (if applicable)
- Isolation panels (if applicable)
- Back-to-back panel configurations
Do these runs meet commercial kennel standards?
Yes, TK Products kennels are built to meet commercial kennel standards. They’re designed with high-quality materials and durable construction to ensure long-lasting performance, safety, and ease of maintenance—making them ideal for professional boarding facilities, breeders, shelters, and veterinary clinics.
Can I anchor them to concrete or grass?
Yes! TK Products kennels can be securely anchored to both concrete and grass. We offer anchoring kits designed for different surfaces to ensure your kennel stays stable and secure in any setup.
How long is your warranty?
All TK Products kennels include an industry-leading 5-year warranty—far exceeding what most competitors offer in the kennel market.
